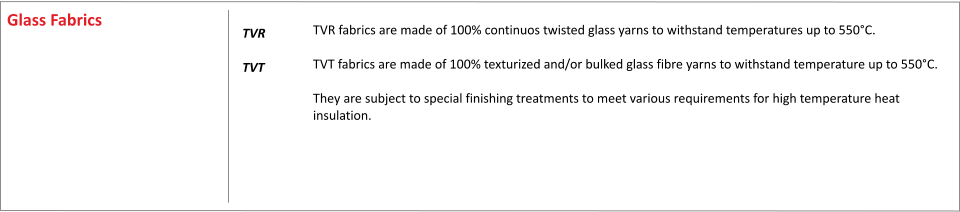

TVR fabrics are made of 100% continuos twisted glass yarns to withstand temperatures up to 550°C. TVT fabrics are made of 100% texturized and/or bulked glass fibre yarns to withstand temperature up to 550°C. They are subject to special finishing treatments to meet various requirements for high temperature heat insulation. TVR TVT Glass Fabrics M.S.P. INSULATION S.r.l. | Via Sandro Pertini, 664 - 21050 Marnate (VA) | tel.: +39 0331 539137 - fax: +39 0331 539851 | p.iva 06817900969 Weight Thickness Max continuous Max continuous g/m2 mm temperature temperature Type Finishing (Toll. ± 10%) (Toll. ± 10%) of fabrics of finish TVR 012 G 100 0,12 24 24 15 15 550°C - AC 120 0,12 24 24 15 15 550°C 100°C ACN 120 0,12 24 24 15 15 550°C 100°C M 120 0,12 24 24 15 15 550°C 100°C TVR 018 G 200 0,18 12 17 35 47 550°C - AC 220 0,18 12 17 35 47 550°C 100°C ACN 220 0,18 12 17 35 47 550°C 100°C PG 220 0,18 12 17 35 47 550°C 180°C AL 280 0,20 12 17 35 47 550°C 100°C M 220 0,18 12 17 35 47 550°C 100°C TVR 136 G 420 0,35 11 19 50 90 550°C - C 420 0,35 11 19 35 63 550°C - PG 420 0,36 11 19 50 90 550°C 180°C AL 500 0,37 11 19 50 90 550°C 100°C AL PES 500 0,37 11 19 50 90 550°C 160°C M 440 0,36 11 19 50 90 550°C 100°C S1/80 500 0,38 11 19 >50 >90 550°C 200°C S1/100 520 0,40 11 19 >50 >90 550°C 200°C S2/100 520 0,40 11 19 >50 >90 550°C 200°C S2/150 570 0,50 11 19 >50 >90 550°C 200°C S2/200 620 0,55 11 19 >50 >90 550°C 200°C TVR 602 G 600 0,60 14 14 100 100 550°C - C 600 0,60 14 14 70 70 550°C - AL 700 0,62 14 14 100 100 550°C 100°C AL PES 700 0,62 14 14 100 100 550°C 160°C TVR 650 G 650 0,70 15 16 105 110 550°C - C 650 0,70 15 16 73 77 550°C - S1/100 750 0,75 15 16 >105 >110 550°C 200°C S1/200 850 0,80 15 16 >105 >110 550°C 200°C S2/150 800 0,85 15 16 >105 >110 550°C 200°C S2/300 950 0,95 15 16 >105 >110 550°C 200°C S2/400 1050 1,05 15 16 >105 >110 550°C 200°C TVR 661 INOX 640 0,70 15 16 85 90 550°C - PG/INOX 660 0,70 15 16 85 90 550°C 180°C TVR 850 G 850 0,85 14 17 140 120 550°C - S2/150 1000 1,00 14 17 >140 >120 550°C 200°C TVR Tensile Strength, kg/cm Weft Warp Threads / cm Weft Warp WeightThickness Max continuousMax continuous g/m2 mm temperaturetemperature Type Finishing (Toll. ± 10%)(Toll. ± 10%) of fabricsof finish TVR 012 G 100 0,12 2424 15 15 550°C - AC 120 0,12 2424 15 15 550°C 100°C ACN 120 0,12 2424 15 15 550°C 100°C M 120 0,12 2424 15 15 550°C 100°C TVR 018 G 200 0,18 1217 35 47 550°C - AC 220 0,18 1217 35 47 550°C 100°C ACN 220 0,18 1217 35 47 550°C 100°C PG 220 0,18 1217 35 47 550°C 180°C AL 280 0,20 1217 35 47 550°C 100°C M 220 0,18 1217 35 47 550°C 100°C TVR 136 G 420 0,35 1119 50 90 550°C - C 420 0,35 1119 35 63 550°C - PG 420 0,36 1119 50 90 550°C 180°C AL 500 0,37 1119 50 90 550°C 100°C AL PES 500 0,37 1119 50 90 550°C 160°C M 440 0,36 1119 50 90 550°C 100°C S1/80 500 0,38 1119 >50 >90 550°C 200°C S1/100 520 0,40 1119 >50 >90 550°C 200°C S2/100 520 0,40 1119 >50 >90 550°C 200°C S2/150 570 0,50 1119 >50 >90 550°C 200°C S2/200 620 0,55 1119 >50 >90 550°C 200°C TVR 602 G 600 0,60 1414 100 100 550°C - C 600 0,60 1414 70 70 550°C - AL 700 0,62 1414 100 100 550°C 100°C AL PES 700 0,62 1414 100 100 550°C 160°C TVR 650 G 650 0,70 1516 105 110 550°C - C 650 0,70 1516 73 77 550°C - S1/100 750 0,75 1516 >105 >110 550°C 200°C S1/200 850 0,80 1516 >105 >110 550°C 200°C S2/150 800 0,85 1516 >105 >110 550°C 200°C S2/300 950 0,95 1516 >105 >110 550°C 200°C S2/400 1050 1,05 1516 >105 >110 550°C 200°C TVR 661 INOX 640 0,70 1516 85 90 550°C - PG/INOX 660 0,70 1516 85 90 550°C 180°C TVR 850 G 850 0,85 1417 140 120 550°C - S2/150 1000 1,00 1417 >140 >120 550°C 200°C TVR Tensile Strength, kg/cm Weft Warp Threads / cm WeftWarp WeightThickness Max continuousMax continuous g/m2 mm temperaturetemperature Type Finishing (Toll. ± 10%)(Toll. ± 10%) of fabricsof finish TVT 280 G 280 0,50 5 8 - - 550°C - TVT 600 C 600 0,85 5 7 22 28 550°C - AL 700 0,90 5 7 30 40 550°C 100°C TVT 621 C 640 0,90 6 8 22 33 550°C - AL 720 0,95 6 8 30 48 550°C 100°C HT 720 0,90 6 8 30 48 550°C >650°C TVT 804 G 850 1,30 7 12 35 60 550°C - C 850 1,30 7 12 24 42 550°C - PG 900 1,30 7 12 35 60 550°C 180°C HT 900 1,30 7 12 35 60 550°C >650°C TVT 1100 G 1100 1,50 4 4 45 45 550°C - PG 1130 1,60 4 4 45 45 550°C 180°C AL 1200 1,60 4 4 45 45 550°C 100°C HT 1250 1,60 4 4 45 45 550°C >650°C HT BLUE 1180 1,80 4 4 45 45 550°C >650°C TVT 2000 G 2000 3,00 2,56 45 45 550°C - AL 2100 3,10 2,56 45 45 550°C 100°C TVTR 25 FERRATEX 820 1,10 6 8 36 54 650°C >650°C Finishing Key ACSelf-extinguishing acrylic resin Technical Characteristics ACNSelf-extinguishing acrylic resin black ALLaminated with aluminium foil thk 15-25 microns Raw Material AL PESLaminated with aluminium polyester foil 100% glass fibre "E" type CCaramelized FERRATEXDouble wire reinforced in weft-warp Chemical Composition GLoomstate SiO2 52/60% HTRefractory vermiculite resin Cao 16/25% HT BLUERefractory resin (Blue) Al2O3 12/16% INOXWire reinforced in weft-warp others 8/20% MNon combustible resin PGAluminium polyurethane coating PG/INOXWire reinforced in weft-warp aluminium polyurethane coating S1Self-extinguishing aluminium silicone rubber coating on one side S2Self-extinguishing aluminium silicone rubber coating on both sides Threads / cm Tensile Strength, kg/cm WeftWarp Weft Warp TVT
rev. 1/10/2015
