Prodotti e Sistemi per l’isolamento termico ed acustico

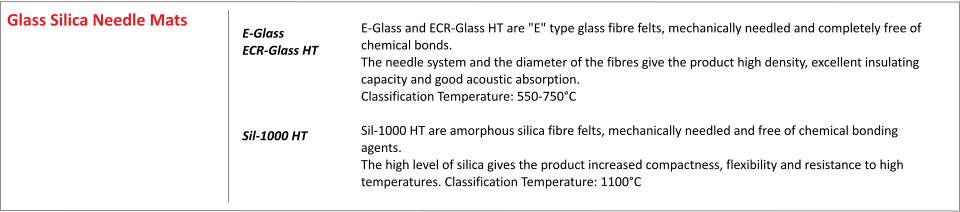

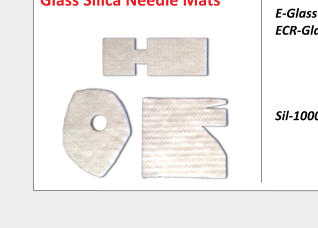

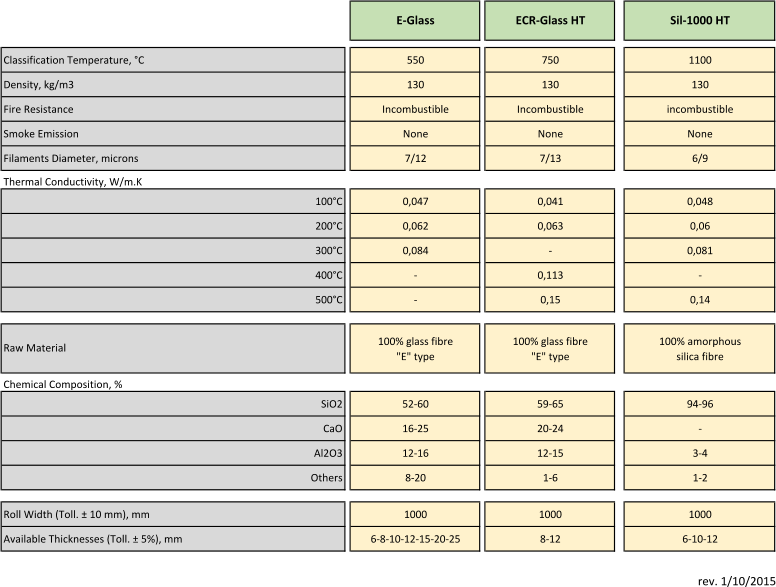

E-Glass and ECR-Glass HT are "E" type glass fibre felts, mechanically needled and completely free of chemical bonds. The needle system and the diameter of the fibres give the product high density, excellent insulating capacity and good acoustic absorption. Classification Temperature: 550-750°C Sil-1000 HT are amorphous silica fibre felts, mechanically needled and free of chemical bonding agents. The high level of silica gives the product increased compactness, flexibility and resistance to high temperatures. Classification Temperature: 1100°C E-Glass ECR-Glass HT Sil-1000 HT Glass Silica Needle Mats M.S.P. INSULATION S.r.l. | Via Sandro Pertini, 664 - 21050 Marnate (VA) | tel.: +39 0331 539137 - fax: +39 0331 539851 | p.iva 06817900969 Classification Temperature, °C 550 750 1100 Density, kg/m3 130 130 130 Fire Resistance Incombustible Incombustible incombustible Smoke Emission None None None Filaments Diameter, microns 7/12 7/13 6/9 Thermal Conductivity, W/m.K 100°C 0,047 0,041 0,048 200°C 0,062 0,063 0,06 300°C 0,084 - 0,081 400°C - 0,113 - 500°C - 0,15 0,14 100% glass fibre 100% glass fibre 100% amorphous "E" type "E" type silica fibre Chemical Composition, % SiO2 52-60 59-65 94-96 CaO 16-25 20-24 - Al2O3 12-16 12-15 3-4 Others 8-20 1-6 1-2 Roll Width (Toll. ± 10 mm), mm 1000 1000 1000 Available Thicknesses (Toll. ± 5%), mm 6-8-10-12-15-20-25 8-12 6-10-12 Raw Material E-Glass ECR-Glass HT Sil-1000 HT rev. 1/10/2015
