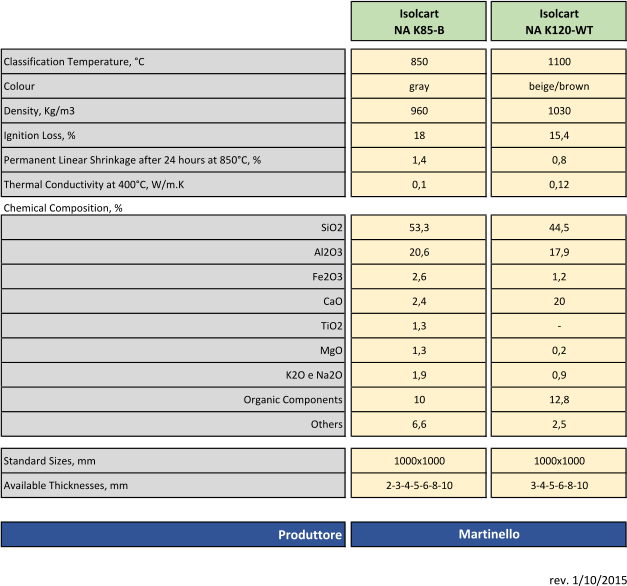

Isolcart Isolcart NA K85-B NA K120-WT Classification Temperature, °C 850 1100 Colour gray beige/brown Density, Kg/m3 960 1030 Ignition Loss, % 18 15,4 Permanent Linear Shrinkage after 24 hours at 850°C, % 1,4 0,8 Thermal Conductivity at 400°C, W/m.K 0,1 0,12 Chemical Composition, % SiO2 53,3 44,5 Al2O3 20,6 17,9 Fe2O3 2,6 1,2 CaO 2,4 20 TiO2 1,3 - MgO 1,3 0,2 K2O e Na2O 1,9 0,9 Organic Components 10 12,8 Others 6,6 2,5 Standard Sizes, mm 1000x1000 1000x1000 Available Thicknesses, mm 2-3-4-5-6-8-10 3-4-5-6-8-10 Produttore Martinello rev. 1/10/2015
Prodotti e Sistemi per l’isolamento termico ed acustico

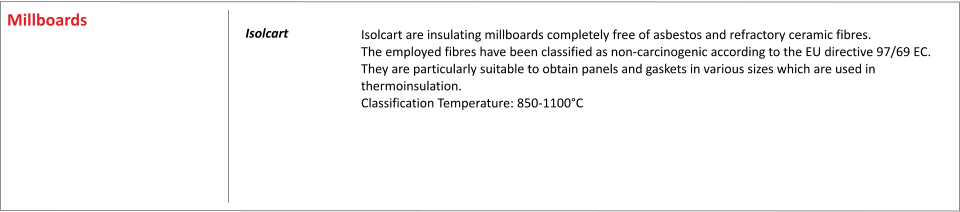

Isolcart are insulating millboards completely free of asbestos and refractory ceramic fibres. The employed fibres have been classified as non-carcinogenic according to the EU directive 97/69 EC. They are particularly suitable to obtain panels and gaskets in various sizes which are used in thermoinsulation. Classification Temperature: 850-1100°C Isolcart Millboards M.S.P. INSULATION S.r.l. | Via Sandro Pertini, 664 - 21050 Marnate (VA) | tel.: +39 0331 539137 - fax: +39 0331 539851 | p.iva 06817900969
