Prodotti e Sistemi per l’isolamento termico ed acustico

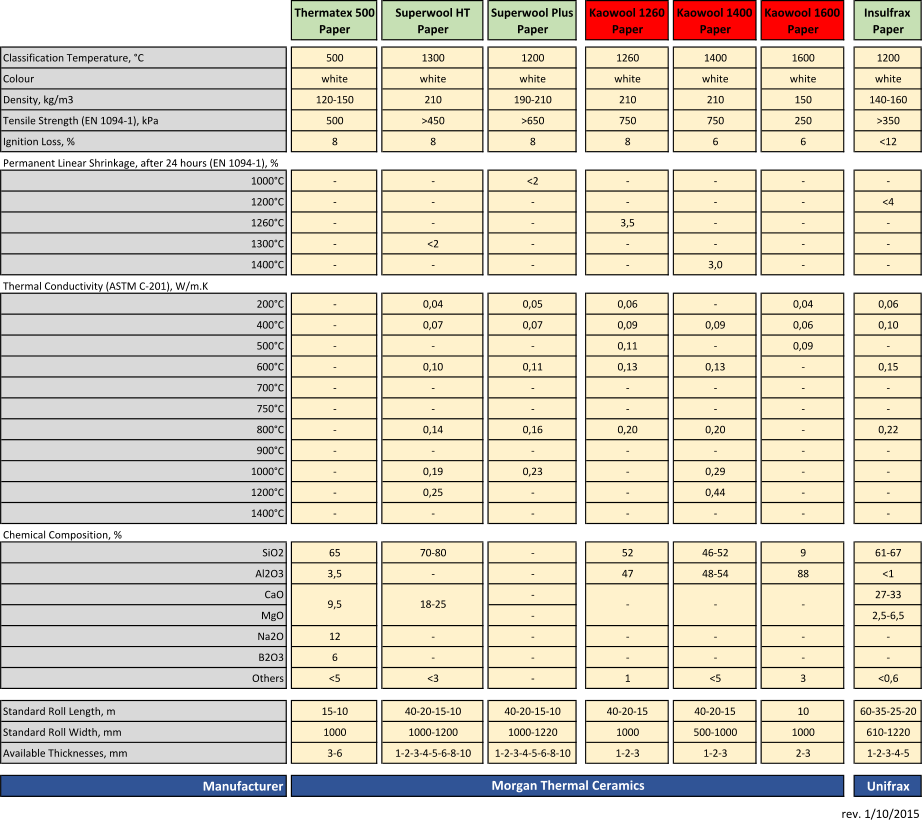

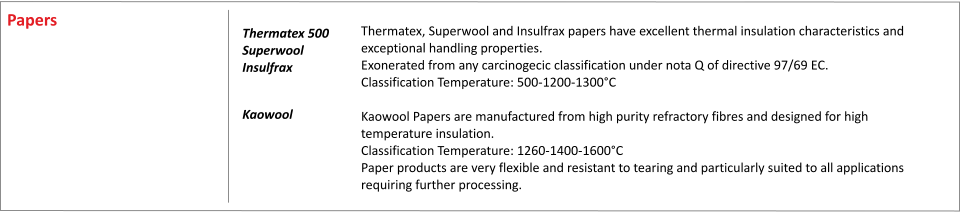

Thermatex, Superwool and Insulfrax papers have excellent thermal insulation characteristics and exceptional handling properties. Exonerated from any carcinogecic classification under nota Q of directive 97/69 EC. Classification Temperature: 500-1200-1300°C Kaowool Papers are manufactured from high purity refractory fibres and designed for high temperature insulation. Classification Temperature: 1260-1400-1600°C Paper products are very flexible and resistant to tearing and particularly suited to all applications requiring further processing. Thermatex 500 Superwool Insulfrax Kaowool Papers M.S.P. INSULATION S.r.l. | Via Sandro Pertini, 664 - 21050 Marnate (VA) | tel.: +39 0331 539137 - fax: +39 0331 539851 | p.iva 06817900969 Thermatex 500Superwool HTSuperwool PlusKaowool 1260Kaowool 1400Kaowool 1600Insulfrax Paper Paper Paper PaperPaperPaperPaper Classification Temperature, °C 500 1300 1200 1260 1400 1600 1200 Colour white white white white white white white Density, kg/m3 120-150 210 190-210 210 210 150 140-160 Tensile Strength (EN 1094-1), kPa 500 >450 >650 750 750 250 >350 Ignition Loss, % 8 8 8 8 6 6 <12 Permanent Linear Shrinkage, after 24 hours (EN 1094-1), % 1000°C- - <2 - - - - 1200°C- - - - - - <4 1260°C- - - 3,5 - - - 1300°C- <2 - - - - - 1400°C- - - - 3,0 - - Thermal Conductivity (ASTM C-201), W/m.K 200°C- 0,04 0,05 0,06 - 0,04 0,06 400°C- 0,07 0,07 0,09 0,09 0,06 0,10 500°C- - - 0,11 - 0,09 - 600°C- 0,10 0,11 0,13 0,13 - 0,15 700°C- - - - - - - 750°C- - - - - - - 800°C- 0,14 0,16 0,20 0,20 - 0,22 900°C- - - - - - - 1000°C- 0,19 0,23 - 0,29 - - 1200°C- 0,25 - - 0,44 - - 1400°C- - - - - - - Chemical Composition, % SiO265 70-80 - 52 46-52 9 61-67 Al2O33,5 - - 47 48-54 88 <1 CaO - 27-33 MgO - 2,5-6,5 Na2O12 - - - - - - B2O36 - - - - - - Others<5 <3 - 1 <5 3 <0,6 Standard Roll Length, m 15-10 40-20-15-1040-20-15-1040-20-1540-20-15 1060-35-25-20 Standard Roll Width, mm 1000 1000-12001000-1220 1000 500-1000 1000610-1220 Available Thicknesses, mm 3-6 1-2-3-4-5-6-8-101-2-3-4-5-6-8-101-2-3 1-2-3 2-3 1-2-3-4-5 Manufacturer Unifrax 9,5 Morgan Thermal Ceramics 18-25 - - - rev. 1/10/2015
