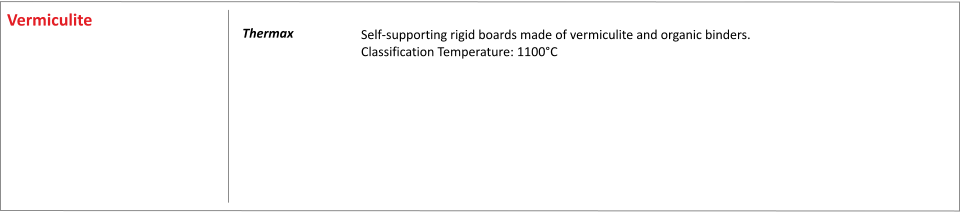

Self-supporting rigid boards made of vermiculite and organic binders. Classification Temperature: 1100°C Thermax Vermiculite
Prodotti e Sistemi per l’isolamento termico ed acustico

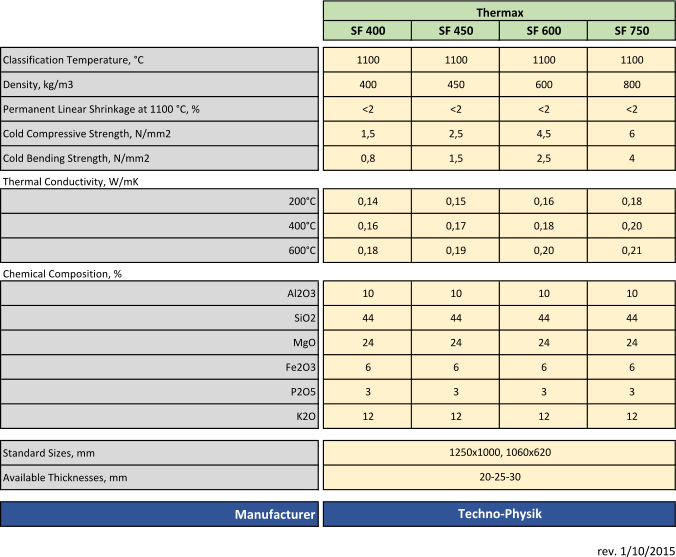

M.S.P. INSULATION S.r.l. | Via Sandro Pertini, 664 - 21050 Marnate (VA) | tel.: +39 0331 539137 - fax: +39 0331 539851 | p.iva 06817900969 SF 400SF 450SF 600SF 750 Classification Temperature, °C 1100 1100 1100 1100 Density, kg/m3 400 450 600 800 Permanent Linear Shrinkage at 1100 °C, % <2 <2 <2 <2 Cold Compressive Strength, N/mm2 1,5 2,5 4,5 6 Cold Bending Strength, N/mm2 0,8 1,5 2,5 4 Thermal Conductivity, W/mK 200°C0,14 0,15 0,16 0,18 400°C0,16 0,17 0,18 0,20 600°C0,18 0,19 0,20 0,21 Chemical Composition, % Al2O310 10 10 10 SiO244 44 44 44 MgO24 24 24 24 Fe2O36 6 6 6 P2O53 3 3 3 K2O12 12 12 12 Standard Sizes, mm Available Thicknesses, mm Manufacturer Techno-Physik Thermax 1250x1000, 1060x620 20-25-30 rev. 1/10/2015
